钙稳定氧化锆-定径水口耐火材料

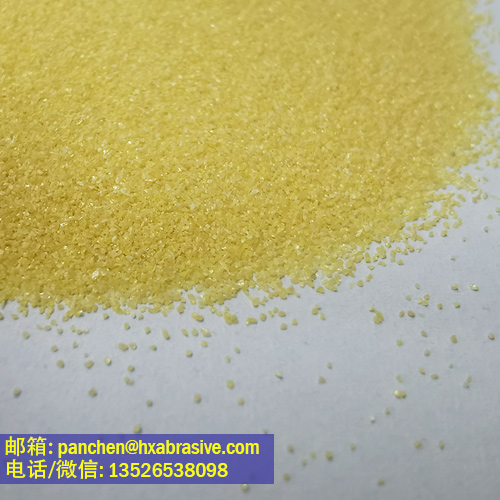

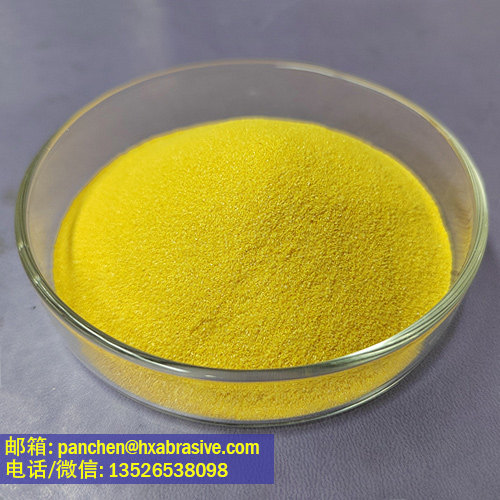

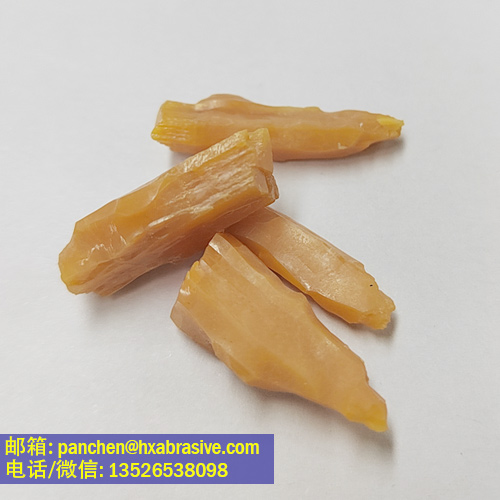

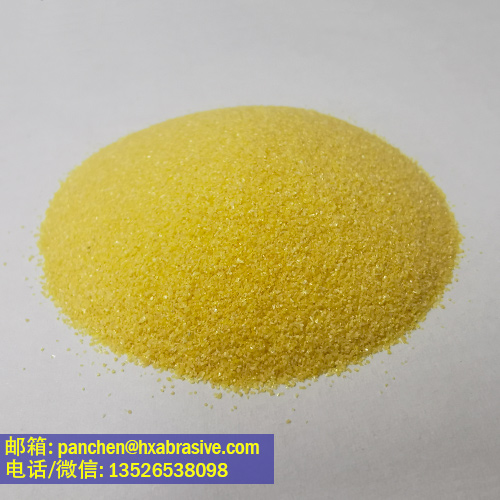

钙稳定氧化锆空心球、颗粒和粉末是锆基定型耐火材料的优质原料。它是一种经过氧化钙 (CaO) 化学稳定的电熔氧化锆。钙稳定氧化锆在高温下能够保持其立方晶体结构。因此，其热性能更佳，尤其具有高抗腐蚀性和抗热震性。它可以防止定型耐火材料开裂。
Calcia-Stabilized Zirconia grain is a superior raw material for zirconium base shaped refractories. It is a type of fused zirconia that has been chemically stabilized with calcium oxide (CaO). Calcia stabilized zirconia can maintain its cubic crystal structure at high temperature. Thus the thermal performance is better especially with high anti-corrosion, and thermal shock resistance. It can avoid the shaped refractories cracking.
特性：
1. 高熔点（约2700°C）。
2. 良好的抗热震性。
3. 中等离子电导率。
4. 化学惰性和耐腐蚀性。
5. 与钇稳定氧化锆相比，成本效益更高。
Properties:
1. High melting point (~2700°C).
2. Good thermal shock resistance.
3. Moderate ionic conductivity.
4. Chemical inertness & corrosion resistance.
5. High cost effective compared to Yttrium stabilized zirconia.
钙稳定氧化锆的化学成分 (%)：
成分Item | 空心球Bubble | 3%CSZ颗粒(3% CSZ Grain) | 7%CSZ颗粒(7% CSZ Grain) |
ZrO2 | Min. 95 | Min. 94 | Min. 91 |
CaO | 3.0-4.0 | 3.0-4.5 | 7.0-7.8 |
SiO2 | Max.0.30 | Max.0.40 | Max.0.40 |
Al2O3 | Max.0.20 | Max.0.20 | Max.0.20 |
Fe2O3 | Max.0.05 | Max.0.10 | Max.0.10 |
TiO2 | Max.0.20 | Max.0.20 | Max.0.20 |
钙稳定氧化锆的物理指标：
比重Specific Gravity | 5.6-5.9 g/cm3 |
熔点Melting point | 2700° |
硬度Hardness | 维氏硬度12.5 GPA |
稳定化率Stabilization Rate | 70-95% |
常规型号Specification:
空心球Bubble | 0-1mm,1-3mm,3-5mm,5-8mm,1-5mm,等 |
颗粒&粉末 Grain & Powder | 50#,60#,80#,150#,200#,325#800#,1000#,1500r,2000#, 2500#,3000#,4000#,6000#,8000# 等 |
l 其他型号的空心球、颗粒、粉末可定制。Customized bubble & grain & powder are available upon request.
钙稳定氧化锆的用途：
1. 炼钢炉定径水口、滑动水口、浸入式长水口。

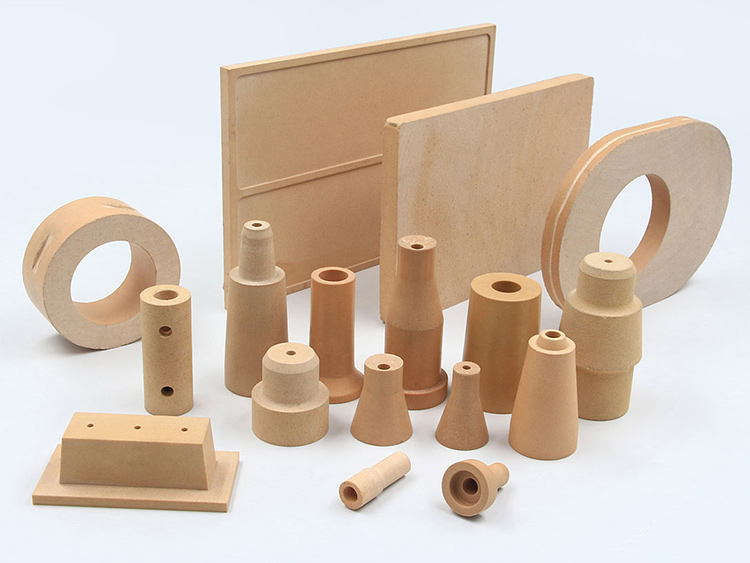

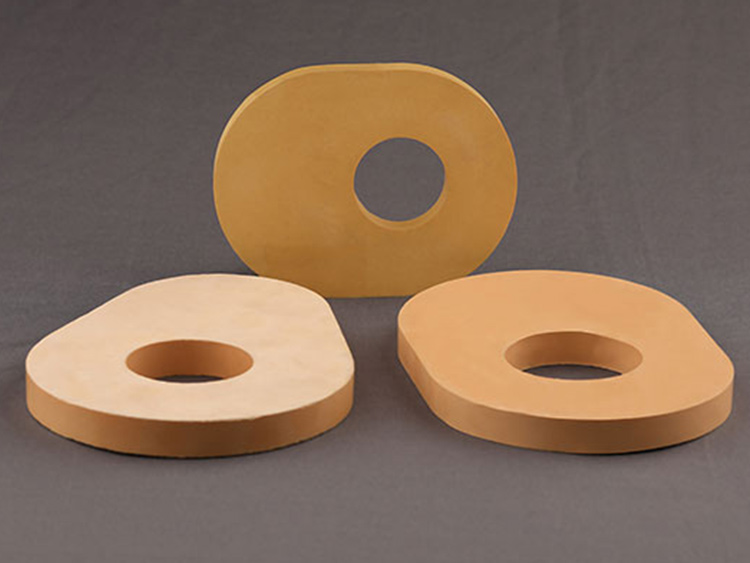

2. 锆基轻质耐火砖及定型耐火材料。
3. 高品质窑具。
4. 电子陶瓷，如承烧板和匣钵。
5. 磨料行业及耐磨添加剂，如汽车刹车片。
Calcia Stabilized Zirconia Application：
1. Fixed diameter nozzle plug, sliding gate, immersion water plug in steel making furnace.
2. Zirconia base lightweight fire bricks and shaped refractories.
3. High quality kiln furniture.
4. Electronic ceramics such as setter plates and saggers.
5. Abrasive industry and wear resistance additives such as auto brake lining.
